Epoxy Adhesives
8329TCM : Medium Cure Thermal Conductive Adhesive
An electronically insulating epoxy that combines moderate
curing rate and high thermal conductivity. It has a convenient
1-to-1 ratio, a workable 45 minutes pot life, and a moderate
curing rate. It may achieve a minimal service cure in seven
hours at room temperature. The cured adhesive bonds very well to
most substrates used in electronic assemblies; and resists
thermal and mechanical shocks.
8329TCS : Slow Cure Thermal Conductive Adhesive
An electronically insulating epoxy that combines long working
time and high conductivity with ease of use. It has a convenient
1-to-1 mix ratio and 4 hours pot life. Due to this long pot
life, the mixed adhesive essentially behaves like a 1-part
adhesive for the duration of a work shift. However, unlike
1-part adhesives, it doesn’t require temperatures as high as 130
and 170 °C, and it will cure at a more moderate 80 °C in less
than 1 hour. The cured adhesive bonds very well to most
substrates used in electronic assemblies; and resists thermal
and mechanical shocks.
8330S Silver Conductive Epoxy: Slow Cure / Extreme
Conductivity
Use in place of traditional soldering on heat sensitive
components. Slow Curing time (96 hr @ 25°C / 77°F) with extreme
conductivity (0.0006 Ω·cm).
8331 Silver Conductive Epoxy: Moderate Cure / High
Conductivity
Use in place of traditional soldering on heat sensitive
components. Moderate Curing time (5 hr @ 25°C / 77°F) with high
conductivity (0.017 Ω·cm).
8331S Silver Conductive Epoxy: Slow Cure / High Conductivity
Use in place of traditional soldering on heat sensitive
components. Slow Curing time (96 hr @ 25°C / 77°F) with high
conductivity (0.006 Ω·cm).
8332 : Fast Set Epoxy
Provides 2300 PSI bonding strength to paper, wood, metal,
and ceramics.

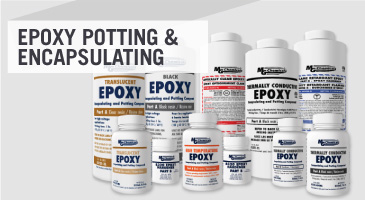

Potting and
Encapsulating Epoxies :
832B :
Black Epoxy
Protects sensitive electronic components from impact, shock,
vibration, heat, conductivity, moisture, chemicals, and visual
inspection.
832C : Translucent Epoxy
Protects sensitive electronic components from impact, shock,
vibration, heat, conductivity, moisture, chemicals. Allows
visual inspection.
832HT : High Temperature Epoxy
For encapsulating and potting electronics in high
temperature environments, aggressive chemical environments, or
where improved technology protection is desired.
832TC : Thermally Conductive Epoxy
Formulated with undiluted Bis F resin for superior physical
properties, and pigmented with high purity aluminum oxide
pigment to provide excellent thermal conductivity at reasonable
cost.
8322 : Optically Clear Epoxy Encapsulating & Potting Compound
Our 8322 Optically Clear Epoxy offers a very strong and
UV-resistant finish. This two part coating is simple to mix and
use: it does not require special or costly equipment to apply.
834ATH : ATH
Flame Retardant Epoxy
A two-part, economical, electronic-grade, self-extinguishing,
flame retardant epoxy that provides excellent physical,
chemical, and electrical protection and offers a degree of
thermal conductivity.
834FRB : Flame Retardant Epoxy
The 834FRB Flame Retardant Epoxy Encapsulating and Potting
Compound is a UL 94V-0 recognized electric grade epoxy in the
QMFZ2 category. This two part self-extinguishing epoxy provides
a black finish with great insulation and protection value.
|
